PULSAR TURBO SYSTEMS
Gen 3 Turbocharger EWG Kit FG/FGX Ford Falcon XR6 - PSR3584
Gen 3 Turbocharger EWG Kit FG/FGX Ford Falcon XR6 - PSR3584
Regular price
$1,575.00 AUD
Regular price
Sale price
$1,575.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
- Larger Turbine Wheel for higher flowability
- Genuine structure and rebuildable dual ceramic ball bearing system
- Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
- Billet actuator with black anodized coating
- 3 Layer Stainless Steel 5 Bolt Gasket
- Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
- Larger Turbine Wheel for Higher Horsepower: 74*66mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ Hose
- Turbine Inlet: T3 Open
- Turbine Outlet: 5 Bolt
- Turbine Housing: 1.06A/R
- Water Ports: -6AN
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange
- Suits all FG and FGX Falcons

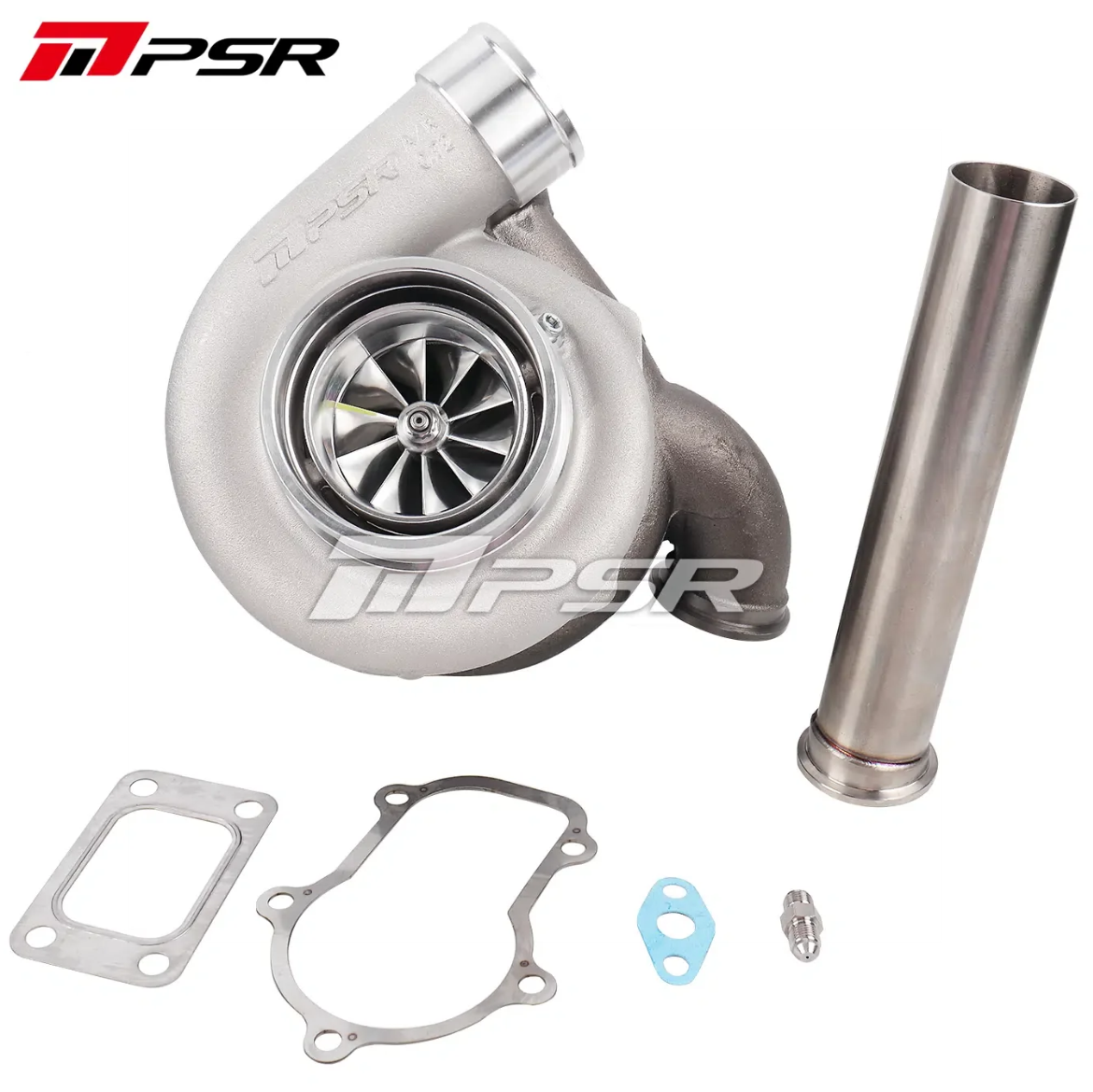

- Comes as a Complete Turbo
- Suits PSR New Generation 45mm Wastegate or Turbosmart Gen V Wastegate
